Sailcloth Material: Guide to Modern Sail Fabrics for Cruising and Racing

Key Takeaways

• The vast majority of modern cruising sails use woven polyester (dacron sailcloth), while high-performance racing sails often rely on laminated sailcloth with aramid fibers, carbon fiber, or Ultra-PE fibers for superior shape holding.

• Choosing sail material is a trade-off between stretch resistance, durability, weight, and cost. Different boats and sailing styles - coastal cruising vs. offshore racing - need different cloth.

• Well-known sailcloth manufacturers like Challenge Sailcloth, Contender Sailcloth, and Dimension Polyant each specialize in particular constructions, from rugged cruising fabrics to advanced laminates.

• Owners should think in terms of sail "lifecycle" (expected years of use, uv exposure, flogging, racing intensity) rather than just initial price when comparing cruising sails and racing sails.

• Later sections give concrete material recommendations by boat size and sailing style, plus a practical FAQ on care, repair, and when to replace sails.

Introduction: What "Sailcloth Material" Really Means Today

Sailcloth is a durable material designed to harness wind power, and the term "sailcloth material" refers to the specific combination of fibers and constructions used to build modern sails. Sailcloth materials include woven polyester, laminates, and 3D membranes - each engineered to withstand wind and weather conditions across different sailing demands. Modern sailcloth is primarily woven from synthetic fibers such as polyester, though advanced options now incorporate aramid, carbon, and ultra-high-molecular-weight polyethylene. Sailcloth is valued for its high strength-to-weight ratio and resistance to tearing, and its exceptional strength and weather resistance make sailcloth suitable for various applications. Beyond the water, sailcloth is used in various products beyond sailing including bags and outdoor gear.

Before the 1950s, sails were made from natural canvas "duck" - cotton and flax cloth that rotted, stretched, and weighed down rigs. The adoption of polyester fiber after DuPont developed PET changed everything, giving sailors a sail fabric that resisted UV, shed water, and held its shape season after season.

Today, sail loads running from luff to leech and head to clew demand technical fabrics that balance low stretch, tear strength, uv resistance, and flex-fatigue resistance. This article walks through the main sail materials, explains when each is used, and gives you the vocabulary to talk intelligently with a sailmaker about cloth options - whether you're ordering cruising sails for blue-water passagemaking or short-life, high-shape-fidelity racing sails for competitive fleets.

Core Sail Materials: From Dacron to Carbon

This section is a field guide to the main sailcloth fibers used in modern sailmaking, distinguishing between woven sail fabric and fibers mostly found in laminates.

• Polyester / Dacron: Dacron is the most common sailcloth fiber used today - a trade name for PET polyester fiber. Polyester sailcloth has high uv resistance and low cost, making it the industry standard for cruising sails. High-tenacity grades offer improved stretch performance over standard polyester fabric.

• Nylon: Nylon is lightweight and used for spinnakers. It is ideal for downwind sails due to its lightweight nature, but excessive stretch and lower uv resistance rule it out for upwind sails, mains, or headsails.

• PEN Fiber (Pentex): A higher-modulus polyester variant. PEN fibers stretch only 40% as much as standard PET fibers, making pen fiber a popular choice in laminate sail fabric for performance cruising and club racing.

• Aramid Fibers (Kevlar, Twaron, Technora): Aramid fibers are preferred for racing sails due to low stretch. Kevlar has a modulus five times greater than polyester, and Kevlar was introduced for sails by DuPont in 1971. The trade-off: poor uv resistance and vulnerability to repeated flexing and flogging.

• Ultra-PE (Dyneema, Spectra): Ultra PE fibers like Dyneema offer very high breaking strength and very low stretch. They have excellent uv protection characteristics but are susceptible to creep under sustained static load, and are often blended in laminates for large cruising yachts.

• Carbon Fiber: The stiffest commonly used sail fiber. Carbon fiber provides exceptionally low stretch and high durability. Carbon fiber is impervious to UV damage and has low stretch, though it is sensitive to hard creases and flogging - a grand-prix and high-end performance choice.

Dacron Sailcloth: The Workhorse for Cruising Sails

Dacron sailcloth has become shorthand in the boating world for woven polyester sailcloth. Polyester is the most commonly used sail fiber, and virtually every major loft has built mainsails and genoas from this woven material since the 1960s. Dacron is known for its durability and low cost, which explains why it remains the default for the vast majority of cruisers worldwide.

Woven polyester sailcloth is produced by interlacing warp and fill yarns in a tight weave, then applying resin finishing and heat-setting to lock in dimensional stability. Yarn sizes and denier vary by intended use: heavier cloth for offshore mains, lighter sail weights for headsails on smaller boats. The finishing process controls how much crimp remains in the yarn, directly affecting stretch under load and the load direction behavior of the fabric.

High-tenacity polyester yarns suit blue-water cruising sails that must hold good shape for years. Standard grades work fine for budget coastal cruising. In terms of construction, crosscut dacron sailcloth uses horizontal panels where heavily loaded fill yarns bear primary loads, while radial dacron (such as products from Dimension Polyant's Pro Radial line or North Sails radial fabrics) arranges panels from corners for improved stretch control.

The advantages for any cruising sailor are clear: predictable stretch, easy repair with conventional sewing, solid chafe and uv resistance, and relatively low cost per yard compared with laminates. Dacron sails typically last 10-20 years with proper care.

The key limitations are gradual shape loss - "bagging out" - and higher weight versus laminates. Performance-oriented sailors on boats above roughly 35-40 ft often find dacron's stretch characteristics limiting for competitive upwind work.

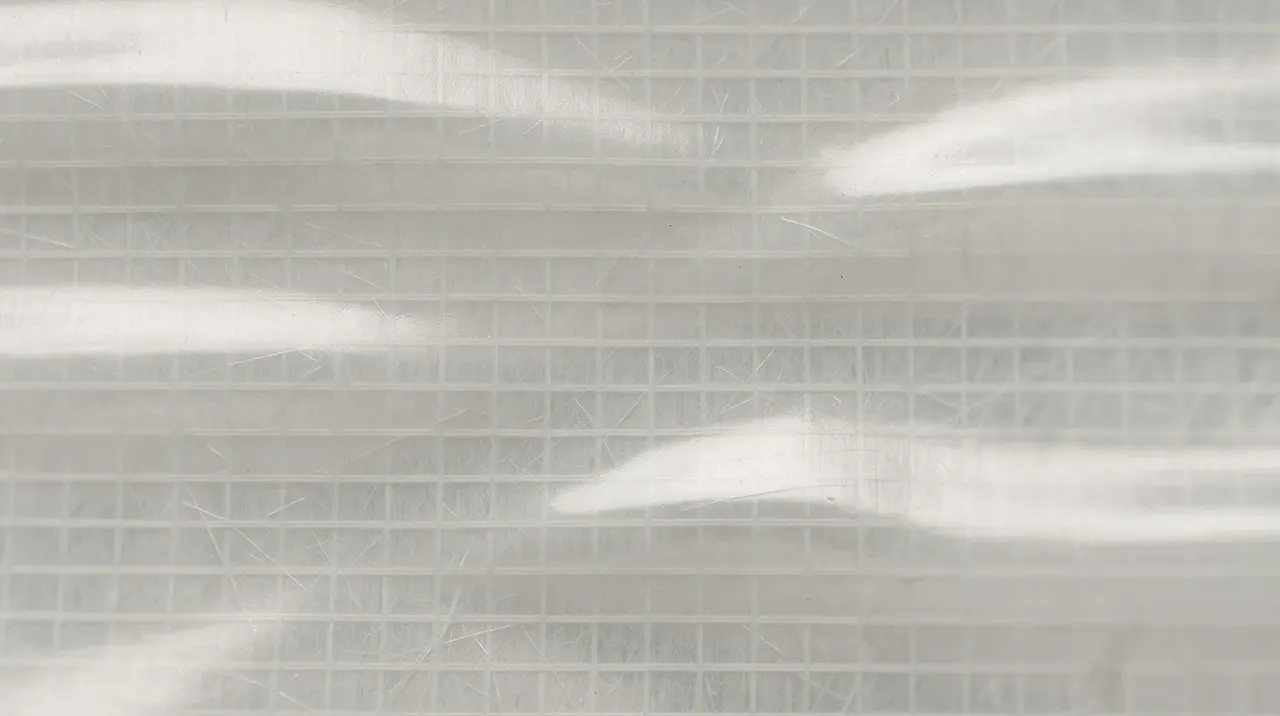

Laminated Sailcloth: Mylar, Scrims, and High-Tech Membranes

Laminated sailcloth layers film (often PET mylar or PEN film) with reinforcing fibers and sometimes taffeta to create thinner, lighter, lower-stretch sails than woven dacron. Laminated sailcloth combines films with reinforcing fibers for better performance, and laminate sails are constructed by bonding fibers between layers of film. Laminated sails were first introduced in the early 1970s, and the technology has evolved considerably since.

The basic concept is "film-scrim-film": high-modulus fibers - carbon fiber, aramid, PEN, or Ultra-PE - laid as scrims or warp-biased grids between films to resist stretch along primary load paths. More robust cruising laminates add outer taffeta layers (polyester or aramid) from makers like Contender Sailcloth or Dimension Polyant, providing chafe and uv protection for longer service life.

Classic panel-cut laminated sailcloth (roll goods cut into panels with seams) differs from fully molded or string-style load-path sails. Many performance cruisers use panel-laminate mains and headsails rather than full custom membranes, keeping cost manageable while gaining significant shape benefits.

Laminated sailcloth has better shape retention and lower stretch than dacron, making it suited for anyone wanting a lighter sail that holds its designed shape under load. The trade-offs: shorter service life (often 3-5 seasons for actively raced club boats), higher sensitivity to flogging, folding, and uv exposure if not covered, and more complex repair requirements. Visually, laminated sails often appear semi-transparent with visible scrim patterns beneath the surface.

Cut and Construction: Crosscut, Radial, and Load-Path Sails

The same sail materials can behave very differently depending on panel layout: crosscut, bi-radial, tri-radial, and load-path or membrane construction.

• Crosscut: Crosscut construction is the simplest way to build a sail. Horizontal panels stacked from foot to head, well matched to unbalanced woven dacron where strength lies mainly in the fill direction. Best price option for many sailors.

• Bi-radial and tri-radial: Panels radiate from corners (tack, clew, head) so higher-modulus fibers align with primary load paths. Especially effective with radial dacron and laminated sailcloth, improving stability and shape retention under varying loads.

• Load-path / membrane sails: Membrane sails eliminate the limitations of panels by aligning fibers along load paths. Continuous fibers - carbon, aramid, Ultra-PE, or sometimes liquid crystal polymer - are laid along computer-calculated load paths onto a film base, forming a near-seamless membrane. Carbon tapes or continuous strands replace traditional seams. Systems inspired by products like North Sails' 3DL/3Di are now used widely across the industry.

For most cruisers up to about 40 ft, crosscut or simple radial construction in dacron or durable fabric offers the best cost-to-benefit ratio. High-level racing campaigns on larger boats justify full load-path technology, where the performance gains in sail design translate directly to speed.

Comparing Sail Materials for Cruising Sails

The priorities for cruising sails are reliability, long life, easy handling, and predictable behavior - not absolute minimum stretch.

Dacron remains the most durable fabric option for many sailors on boats under 40 ft. Cruising laminates - produced with polyester or PEN film cores and protective taffetas - serve performance-oriented cruisers by offering improved shape retention at the cost of somewhat shorter lifespan.

A 36-ft family cruiser mostly day-sailing could choose premium dacron for all working sails. A 40-ft performance cruiser doing annual distance races might select a polyester laminate main and dacron working jib. Budget planning matters: cloth choice may move a sail quote by 20-40%, but can change usable life and performance enough to justify the upfront spend.

Comparing Sail Materials for Racing Sails

High-performance racing sails may use laminated or composite materials, and are optimized for speed and shape control under specific rating rules - accepting shorter lifespans in exchange for performance.

• Club racing: Pentex-based laminated sailcloth or polyester cruising laminates for mains and jibs often stay competitive for 2-4 hard-raced seasons before noticeable shape degradation.

• Serious racing: Aramid fibers like Kevlar are preferred for racing sails, alongside carbon fiber laminates with thin taffeta for handling protection. Carbon fiber sails are impervious to UV damage and low stretch, but sensitive to flogging and sharp creases from heavy uv exposure and rough handling.

• Blended membranes: Carbon/Ultra-PE hybrids where carbon handles primary loads and Dyneema contributes toughness, commonly used on 40-60 ft performance yachts.

Many one-design and IRC/ORC offshore programs maintain two inventories: a top-end regatta set with carbon or aramid membranes and a "practice" set in more forgiving laminate. Keelboats under 30 ft - smaller boats - often gain more from good sail design and tuning than from exotic materials. Above roughly 35 ft, laminate or membrane upwind sails become increasingly attractive for competitive fleets.

Major Sailcloth Manufacturers and Signature Products

Here's a brief buyer's map to the cloth brands sailors encounter in sail quotes.

• Challenge Sailcloth: A long-standing American supplier known for robust woven dacron lines and durable cruising laminates. Their ULTRA collection features Ultra-PE composite fabrics, with the ULTRA 100 weighing approximately 99 g/m² - suited for blue-water sailors and production boatbuilders seeking the most durable fabric option.

• Contender Sailcloth: Focused on performance-oriented woven and laminated products, with series like Pro Radial dacron and CDX-style polyester laminates popular in European and global club-racing fleets. In 2025, Contender was acquired by Sioen Industries, joining with Dimension Polyant.

• Dimension Polyant: A leading German-US manufacturer of high-end laminates, Lite Skin surfaces, and high-modulus aramid and carbon constructions. Their Pro Radial woven polyester line narrows the gap between woven and laminate performance.

• Bainbridge International: Another established supplier across woven and laminate ranges.

Major sailmaking brands - including groups like North Sails and independent lofts worldwide - often specify proprietary blends, so the underlying fiber and construction type matters more than the marketing name. Ask any sailmaker to identify the base cloth manufacturer, fiber type, and construction so you can compare like-for-like between quotes from different materials and different lofts.

Choosing the Right Sailcloth for Your Boat and Sailing Plans

Matching sail materials to your boat, climate, and sailing intensity is the practical decision that matters most. Here are concrete profiles:

• 30-ft weekend cruiser, temperate climate: Standard or premium dacron for all working sails. Low cost, easy maintenance, years of reliable shape.

• 38-ft performance cruiser, annual 200-mile race: Dacron or cruising laminate main, laminate #1 jib. Good balance of durability and performance.

• 45-ft offshore racer-cruiser: PEN or aramid/carbon laminates for primary race sails, dacron delivery sails. Two-inventory approach.

Environmental exposure matters enormously. Intense tropical UV and trade-wind passages accelerate degradation of any sail fabric; temperate climates with shorter seasons are more forgiving. Low water absorption and good uv protection characteristics favor polyester and Ultra-PE in harsh conditions.

Think budget vs. lifecycle: a new sail in better-engineered dacron or cruising laminate may cost less per mile sailed than a cheaper cloth that bags out quickly. Questions to take to a sailmaker: expected years of service, reefing habits, typical wind range, rating rules, and whether you prioritize ease of repair in remote ports or sheer performance. Mixing different materials in an inventory - dacron working jib plus laminate light-air headsail - is often a smart compromise that many sailors find practical.

Care, Maintenance, and Longevity of Sailcloth Materials

Correct handling and storage often have more impact on sail life than the exact choice of fiber - especially for laminated and carbon fiber sails made from sensitive materials.

Best practices for all sails:

• Avoid prolonged flogging (luffing without load)

• Use UV covers on furling headsails

• Rinse salt when possible

• Dry sails before long-term stowage

• Inspect stitching and corner reinforcements annually

Material-specific care: Woven dacron tolerates folding reasonably well but gradually bags. Laminated sailcloth should be rolled rather than tightly creased. Carbon or aramid membranes must be protected from sharp folds and unnecessary uv exposure.

Replacement timing rules of thumb: Cruising dacron often retires when draft moves too far aft and pointing ability suffers. Racing laminates get demoted to practice sails after two or three heavy seasons as shape precision declines.

Repairability: Dacron is the most durable fabric to repair - easily patched and re-sewn nearly anywhere in the world. Film-based laminates and membranes may require specialized patches or return to a loft for reliable structural repairs.

Keep simple log notes on hours sailed under each sail, tropical vs. temperate use, and incidents of flogging or storm conditions. This data makes your next conversation about a new sail - and which cloth to specify - far more productive.

FAQ: Practical Questions About Sailcloth Material

These questions address common buying and ownership issues that many sailors face when evaluating different materials for their next sail purchase.

How long should Dacron vs. laminated sailcloth realistically last?

Well-cared-for dacron cruising sails on a 30-40 ft yacht often remain serviceable for 8-12 years, and some last considerably longer with diligent UV protection. Actively raced polyester or Pentex laminates typically give 3-6 seasons of good shape before noticeable stretch and draft migration. Aramid and carbon racing membranes might only deliver 1-3 top-performance seasons in hard campaigns, after which they still serve as delivery or practice sails. Climate, storage habits, and flogging frequency can cut these averages in half or extend them significantly.

Can I mix Dacron and laminate sails in the same inventory?

Mixing is common and practical. Many owners use a dacron main with a laminate headsail, or vice versa, to balance cost, durability, and performance. The key is ensuring luff curves, reef positions, and hardware (cars, furlers) are compatible with the different stretch profiles of each material. Discuss with a sailmaker which sail in your inventory benefits most from laminate - usually the working upwind headsail - for your specific boat and program.

Is carbon fiber sailcloth worth the cost for a non-professional sailor?

Carbon fiber makes sense mainly for serious racers or performance-focused owners of larger boats (typically 35 ft and above) who actively race under IRC, ORC, or one-design rules. For casual club racing or fast cruising, PEN, aramid, or high-quality polyester laminates often deliver most of the benefit at lower cost with easier handling. Weigh carbon's added pointing ability and stability against its shorter optimal life and greater sensitivity to damage.

What's the difference between branded cloth names and the actual fiber?

Many trade names from Challenge Sailcloth, Contender Sailcloth, or Dimension Polyant are marketing labels for fabric recipes combining particular fibers, weaves, films, and finishes. Always ask what base fibers (polyester, pen fiber, aramid, carbon fiber, Ultra-PE) and what construction (woven, film-scrim-film, membrane) lie under the trade name. Two branded cloths from different manufacturers can be very similar in underlying characteristics, so understanding the technical description lets you compare fairly between quotes.

How do I tell if my existing sailcloth has lost too much shape?

Look up the sail under load: if the draft has moved noticeably aft, the leech has hooked, or vertical wrinkles radiate from head or tack, the cloth has stretched unevenly. Compare current photos under sail with older images or original loft measurements. Once trimming controls - halyard tension, outhaul, cunningham, backstay - can no longer pull the draft forward and flatten the sail effectively, it is time to budget for replacement in a more stable sail material that matches your current sailing plans.
