Getting rig measurements right is the single most important step before you hand over money for new sails. This guide walks you through every dimension your sailmaker needs, from mainsail luff to spinnaker tack attachment point, so you can avoid costly fitting mistakes and get sails that perform from day one.
Accurate rig and sail measurements (P, E, I, J, luff length, LP and more) are essential before ordering new sails or evaluating old sails. The four primary rig measurements are I, J, P, and E.
All these measures should be taken on the boat with a reliable tape measure and a second person helping, not by copying numbers from old sail labels or outdated certificates.
Spinnaker halyard height, spinnaker pole length and mainsail foot strongly influence both downwind and upwind performance and must be measured directly on the rig.
Photo documentation of masthead fittings, boom ends and forestay hardware, combined with double-checking every number, prevents expensive fitting mistakes on custom-built sails.
Small measurement errors can significantly affect sail fit, so measure twice and send everything to the loft before cutting begins.
Modern sail lofts rely on owner-supplied rig data for quoting and design. In 2026 and beyond, most lofts discourage designing from old sail labels alone, because stretch, recutting and rig modifications make those numbers unreliable. Measuring sails accurately is important for ordering new sails or checking used sails against what the rig can actually carry.
Poor measurements cause real problems. A clew set too low forces the sail edge into the lifelines. A mainsail head hitting the mast crane means the main halyard cannot reach the maximum main halyard position. A headsail fouling the pulpit or a symmetric spinnaker unable to gybe cleanly because of incorrect pole dimensions wastes time and money.
Understanding the difference between basic rig dimensions and actual sail dimensions is critical. Rig measurements define the mast, boom and foretriangle constraints, while sail measurements describe the actual luff, leech, foot and widths of each sail. Both sets are needed. Rating rules like ORC and IRC compute sail area from these numbers, and hardware selection (furler size, winch power, track length) depends on them too. Sail area affects load requirements for onboard equipment, from sheet winches to traveler cars. Boat modifications can affect the required sail dimensions, so measuring the existing sails is useful but cannot replace measuring the actual rig, especially after refits or mast replacements.
All measurements should be done at the dock on a calm day with the boat floating, level and secure. Accuracy can be improved by measuring on calm days and keeping the tape under sufficient tension. The mast should be in its normal sailing condition with the backstay tensioned and rig tuned.
Here is what you need:
A 30–50 m fiberglass measuring tape (flexible, non-stretch, corrosion-resistant)
A fine-tip permanent marker or chalk
A printed measurement form or notebook
A smartphone or camera for photos
A bosun's chair and safety line for going aloft
Using a rigid tape measure provides more accurate measurements than a flexible one for straight runs along the boom or deck, but rigid steel tapes kink easily, corrode in salt air and cannot follow curves. For luff length measurements along a curved mast or forestay, a flexible measuring tape is the practical choice. Have two people wherever possible: one at the masthead or measurement point, one reading the tape at the deck or boom.
Record dimensions in millimetres or centimetres for precision, but keep a second column for feet and inches if your North American loft requires it. Always note the exact date (e.g., "Measured July 21, 2026") and boat details (builder, model, year, rig type) on the form. Documenting measurements with sketches and photos aids communication with sailmakers and eliminates guesswork later.
The mainsail luff length and mainsail foot length define the basic envelope for any new mainsail design. P is the mainsail hoist measurement, and E is the mainsail foot measurement. Together they set the boundaries for cloth, battens, roach and reefing layout.
P (Mainsail Luff): P is the vertical distance along the aft face of the mast from the top edge of the boom (or lower mast band) to the upper mast band or the maximum mainsail halyard hoist point. Mainsail Hoist is measured from upper mast band to lower mast band. Here is how to do it step by step:
Shackle the measuring tape to the main halyard.
Hoist until the halyard shackle hits the masthead sheave or upper black boom band.
Apply light tension to remove slack and keep the tape straight along the aft face of the mast.
Read the measurement at the lower band or top of the boom at the goose neck.
The working mainsail luff is usually a few centimetres shorter than P to allow for stretch, Cunningham adjustment and halyard tension. The mainsail hoist elevation is the actual height available for the leading edge of the main sail, and it is what the sail designer uses to set the finished luff dimension.
E (Mainsail Foot): Mainsail Foot is the distance from mast to boom band. Measure along the boom from the aft face of the mast to the black band or maximum outhaul position at the aft end of the boom. Before reading E, check that the boom is level to the waterline. Adjust the vang or topping lift so a drooping boom does not distort the horizontal distance you are reading.

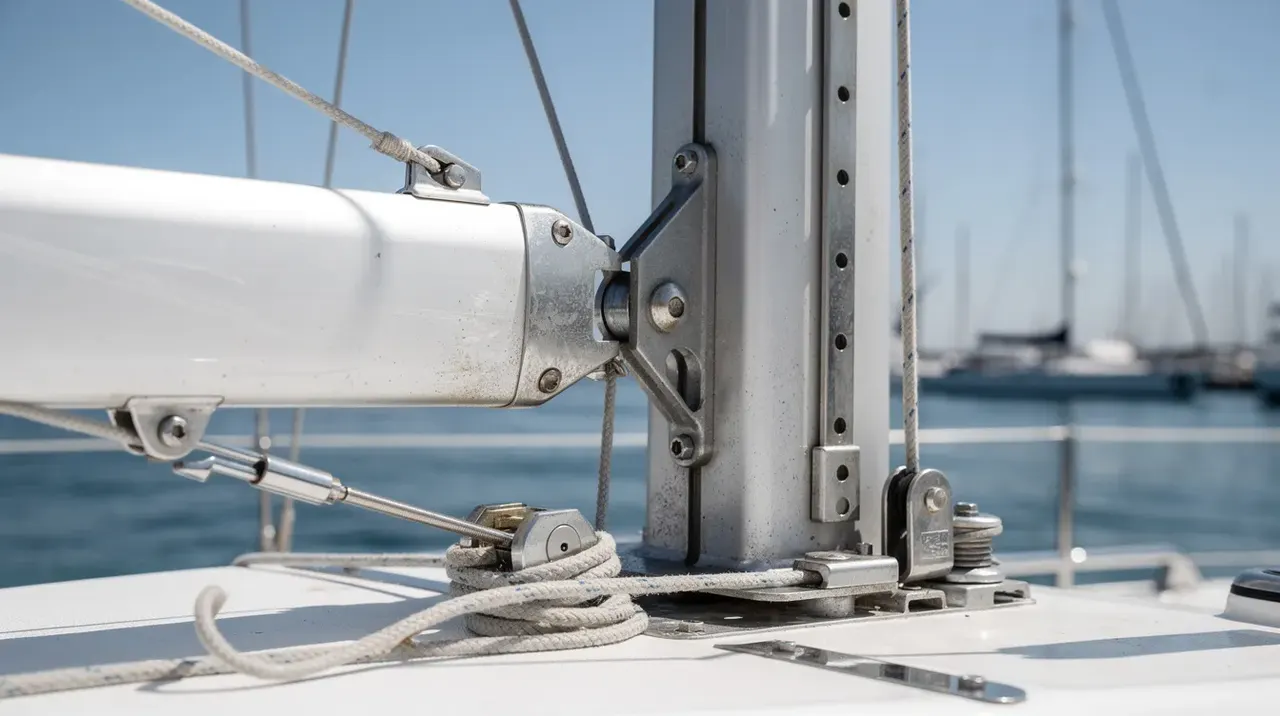

Tack Pin Setback: On many booms the tack pin sits slightly aft of and above the mast at the gooseneck rather than hard against it. Record how far behind the mast and how far above the boom the tack pin sits (traditionally noted in inches on North American forms, though millimetres are fine). This lets the loft position the tack ring so the finished mainsail sits without puckering at the gooseneck. It is not critical for stock or used sails, where the tack is already fixed and can be adjusted with a shackle or lashing, but it matters for a custom-cut mainsail.
Luff and Foot Hardware: Note how the mainsail attaches to the mast and boom — sail slides, slugs, or a bolt rope — and record the dimensions. Flat internal and external slides are measured across their width, while cylindrical slugs and bolt rope are measured by diameter. This hardware is straightforward to change later, but supplying it up front lets the loft finish the luff and foot correctly the first time. Photograph the existing fittings alongside the written measurements.
Mainsail area is calculated as P x E / 2. Batten configuration, roach profile, square top options and backstay clearance all depend on P and E, even though those features are designed rather than directly measured in this step.
Foretriangle measurements are the basis for all headsails, from a small working jib to a 150% genoa. Getting I and J right determines maximum luff length, overlap and upwind sail area.
I (Foretriangle Height): I is the height of the foretriangle. It is the foretriangle elevation, the vertical distance from the sheer line at the mast (deck level near the mast, often at the side deck) up to the highest headsail halyard sheave or the point where the forestay intersects with the mast. Height of Foretriangle is taken from the deck at the mast up to the forestay-to-mast attachment or the highest headsail halyard sheave, depending on which reference your rating system uses.
To measure I, attach the tape to the genoa halyard, hoist fully, and mark the point at deck level with tape or marker. Then drop the tape and read the distance from that mark to the halyard shackle. Some rating systems use "IG" measured to the forestay attachment instead of the halyard; check with your sailmaker which version is required.
J (Base of Foretriangle): J is the base of the foretriangle, the foretriangle horizontal distance measured on deck from the front face of the mast at deck level to the forestay or headstay attachment at the bow. If the boat has a bow roller or furler, measure to the actual tack point of the sail, not only to the stemhead. Record both values if they differ significantly.
I and J connect directly to headsail sizing. LP percentage (100%, 115%, 135%, 150%) defines how far the clew extends past the forestay. Measure both existing sails and the maximum rig dimensions for accuracy, since on many boats hardware changes over time shift the tack point or halyard height.
After rig measurements are known, individual sail dimensions like luff length and luff perpendicular determine the shape and rating of each sail. These numbers are what the sail designer uses to cut cloth.
Luff Length: Luff Length is the vertical distance from the head to the tack, measured along the forestay or furling foil from top to bottom. New sails are often cut slightly shorter than the maximum length of the available stay to account for fittings and stretch under load. The leading edge of a headsail follows this measurement precisely.
LP (Luff Perpendicular): Luff Perpendicular is the shortest distance from clew to luff. LP determines the sail's overlap and classifies a sail as a jib, genoa or code sail under common rating rules. To measure LP on an existing sail, measuring sails for a sailboat requires pulling them taut on a flat surface. Mark the clew, then use a square or tape to find the perpendicular distance to the luff edge. As a sizing shortcut, multiply J by the overlap you want: a 150% genoa on a 10-foot J has an LP of 15 feet.
Sailmakers may also request intermediate widths. The headsail half width and other fractional measurements at the half leech point or three-quarter height are taken between the trailing edge (leech) and the leading edge (luff) at defined fractional heights. These girths feed into rating certificates.
Larger LP values mean overlapping genoas with increased power in light wind but harder tacking around the main shrouds. Smaller LP values suit high-wind jibs and are easier to handle. The relationship between LP and J determines how far the sail extends past the forestay toward the mast.
Roller-furling headsails need two extra measurements beyond I, J and LP: the furler hoist and the luff tape size.
For the furler hoist, hook the tape to the upper furling swivel as if it were the head of the sail, hoist it to the top of the foil, and measure down to the tack fitting at the furling drum. This gives the maximum luff the furler can carry, which is usually shorter than the bare forestay length because the swivel and drum occupy part of the stay. Cut the working luff slightly shorter still to allow for stretch and free rotation.
The luff tape is the beaded edge that feeds into the headfoil groove. Measure its diameter with calipers or a fine-scale ruler on an existing sail, or take it from the furler manufacturer's documentation. The most common size is #6, which measures just over 3/16 inch (around 5 mm), but confirm rather than assume, because a mismatched luff tape will not feed cleanly into the foil.
The clew height of a new jib or genoa determines whether it can be sheeted to your existing genoa track, so it is worth checking before ordering rather than after. Extend an imaginary line from roughly mid-luff through the clew and down to the deck: that line should land within the usable range of your track. If it falls forward or aft of the track, you may need to add or reposition a track or car.
When the lead is correct and the sail is sheeted flat, tension should build evenly down the leech and along the foot at the same time. If the lead is wrong, the sail ends up "strapped" — tight along one edge and loose along the other — which distorts the shape regardless of how well the sail was cut. If you are unsure, mock up the sheeting angle with a length of line or a tape measure run from the clew position to the track and test the tension before committing to a clew height.
Downwind sail performance is driven by three rig dimensions: spinnaker halyard measured height, spinnaker pole length and tack position. All must be measured directly on the rig, not estimated.
ISP (Spinnaker Halyard Height): ISP measures the elevation of the spinnaker halyard. It is the vertical distance from the sheer line at the mast up to the spinnaker halyard sheave or crane. To measure, hoist a tape on the spinnaker halyard with sufficient tension, and read at the intersection of deck and mast or at a clearly marked sheer point. On many boats this differs from I because the spinnaker crane sits above or below the forestay fitting.
SPL (Spinnaker Pole Length): SPL is the spinnaker pole length, the distance from the forward end of the mast face to the outboard end of the spinnaker pole when set at 90 degrees to the mast. For telescopic spinnaker poles, record both fully retracted and fully extended SPL. Class rules may limit the maximum width or length of the pole relative to J.
STL (Spinnaker Tack Length): This is the horizontal distance from the front face of the mast to the spinnaker tack attachment point on a bowsprit or stem fitting, measured with the sprit fully extended if applicable. The tack point position directly controls how far forward the bottom edge of the sail projects.
These three numbers feed into sail design: maximum spinnaker luff, foot length and mid-girth. Spinnaker area is calculated as (SL x (SHW + SF) / 2) x 0.95, where SL is the spinnaker luff, SHW is the half width and SF is the foot. For a symmetrical spinnaker, the ISO formula gives area as approximately 1.56 × I × J. An asymmetrical spinnaker uses different geometry, with the tack running to a bowsprit rather than a pole. Either way, these measurements control projected area and handling during gybes and hoists.
Quick sizing check: As a cruiser-friendly rule of thumb independent of the formulas above, a symmetric spinnaker luff is often set roughly equal to I, with the foot falling between about 1.6 and 1.8 times J. Cruising luffs are sometimes taken at plus or minus 8 percent of I, but never longer than the maximum halyard hoist. Treat these as starting points; the loft refines them against the measured ISP, SPL and STL.
Ketches, yawls and boats with additional stays require extra measurements, but the method mirrors what you have already learned.
Mizzen Mainsail: The mizzen mainsail hoist elevation (Py) and mizzen mainsail foot (Ey) are direct analogues to P and E, measured on the mizzen mast and its boom using the same tape and halyard method. Mizzen area is calculated as Py x Ey / 2. Record these separately on the measurement form.
Staysails and Inner Headsails: Cutter rigs or boats with an inner headstay require inner foretriangle dimensions (Is, Js) from the inner forestay to the deck, mirroring I and J but for the inner rig. These define luff length and foot length for any staysail.
Quadrilateral and Gaff Rigs: Extra measurements such as head length, leech length and throat-to-clew diagonals are required for gaff, wishbone or square top rigs. Capture these systematically and include clear photos.
Record all extra stays-babystays, running backstays, removable cutters-with photos so the sailmaker can suggest appropriate staysails or storm sails. Owners of classic rigs (built pre-1980) should verify dimensions against any existing certificates but still re-measure, because hardware often changes over decades. A picture is worth a thousand words when it comes to unusual rig configurations.
Once P, E, I, J, ISP, SPL, STL and luff length are known, approximate sail areas can be calculated and performance expectations set.
| Sail | Formula |
|---|---|
| Mainsail | P × E / 2 |
| Jib / Genoa | (I × J) / 2 × LP% |
| Symmetric Spinnaker | ≈ 1.56 × I × J |
Jib area is calculated as (I x J) / 2 x LP%. Choosing a 100%, 110% or 135% LP changes balance, pointing ability and sheet loads. A larger LP genoa delivers more power in light air but is harder to tack. A smaller working jib handles higher winds and clears the main shrouds more easily.
Spinnaker area scales with spinnaker luff length, foot length and half width. Most cruising boats use more conservative, easy-handling sizes than race-optimised maximum kites. Intended sailing use influences sail design, cloth weight, and reinforcement, so discuss with your sailmaker whether to push to rule maximums or design for practical cruising limits.
Accurate measurements can reveal upgrade options. You may find that slightly increasing the mainsail foot or luff within class rules recovers area lost to aging cloth on old sails. The measured rig data becomes the baseline for every decision the loft makes about your new sails.
Many misfits trace back to simple mistakes that are easy to prevent with a checklist. One documented case saw an owner writing 35.5 feet instead of 38.5 for the luff, producing a sail three feet too short. Measuring twice would have caught it.
Typical errors include:
Measuring old sails laid out unevenly on a dock rather than pulled taut
Misreading the tape (cm versus inches)
Forgetting to subtract for shackles or headboards
Measuring from the wrong reference line (front face instead of aft face of mast, top of boom versus the forward end of boom)
Reading E with a drooping boom instead of a level one
Estimating instead of hoisting a tape to full halyard height leads to mains that are too long or too short, especially on fractional rigs where the maximum main halyard position sits below the masthead. Always double-check critical numbers (P, E, I, J, ISP, SPL, STL and luff length) and have a second person independently re-measure.
Take multiple clear photos of masthead fittings, the boom band at the aft end, forestay attachments and spinnaker pole hardware. Label each photo to accompany the written figures. Send the completed measurement sheet and photos to the sailmaker for a sanity check before the loft starts cutting cloth.
Good documentation makes it easier for a loft to propose the right cloth weights, reef positions and hardware when designing new sails. The difference between a quick turnaround and weeks of back-and-forth emails often comes down to how complete your file is.
Organise your measurement file with:
A scanned or digital measurement form with every dimension identified by its standard abbreviation (P, E, I, J, ISP, SPL, STL, luff length, LP)
A simple sketch of the rig showing where each dimension is taken
A set of photos labelled by measurement name (e.g., "P at mast base," "ISP at masthead")
Use a consistent format-all dimensions in mm, followed by conversions if needed. Document hardware details, including roller furling, mast track type, and batten configuration. Note whether any hardware changes are planned before the new sails are fitted.
For complex projects or first-time measurers, scheduling a video call from the boat can help the sailmaker confirm the process while accurate measurements are being taken. Clear, complete documentation speeds up quoting, avoids confusion and contributes directly to a better-fitting, longer-lasting sail inventory.
Below are common questions that come up when sailors start measuring sails and rig dimensions for the first time.
For most cruising boats, accuracy within 5–10 mm on critical rig dimensions (P, E, I, J, ISP, SPL, STL) is sufficient. Rating-driven race boats should aim for a few millimetres where possible, since even small discrepancies can affect scoring. It is better to provide conservatively small maximum luff and foot values than to risk sails that are too long and cannot be hoisted fully. When measuring the distance along a boom or mast, keep the tape straight and under light tension to avoid sag that inflates the reading.
Measuring is usually best with the boat floating and the rig properly tuned, because mast rake and prebend are then in their normal sailing positions. If the boat is on the hard for winter storage, ensure rigging is fully tensioned to sailing settings before relying on any measurements taken ashore. A slack rig on jackstands can shift the mast position by several centimetres, distorting P, I and every dimension derived from the mast datum at the deck.
Old sails give useful information about hardware, patch positions and reefing layout, but stretch and past recutting mean their luff length and foot are no longer a perfect template. The leech point positions and clew location on a stretched sail can be centimetres off from the original design. Combine measurements from the old sails with fresh rig measurements and photos so the loft can correct for stretch and optimise shape for modern materials.
If the current mainsail headboard cannot reach the mast crane or binds under the sheave, the actual available hoist is less than the label suggests. Measure the real maximum hoist with a tape on the main halyard and design the new mainsail with a slightly shorter luff length and suitable headboard to ensure free hoisting and easy reefing. The sail should move smoothly to the upper limit without jamming.
Casual cruisers can rely on a good set of measurements for many years but should re-measure whenever the mast, boom, furler or major deck hardware is changed. Active racers or owners chasing measurement certificates should revisit key dimensions at least every time they commission a new sail wardrobe, typically every 4–8 years depending on usage and wear.
