General
Boat Type
Monohull
Hull Type
Fin Keel With Bulb And Spade Rudder
Rigging Type
Fractional Sloop
Construction
Fibreglass
First Built
2013
Builder
Dehler (Ger)
Designer
Judel/Vrolijk
Technical Specifications

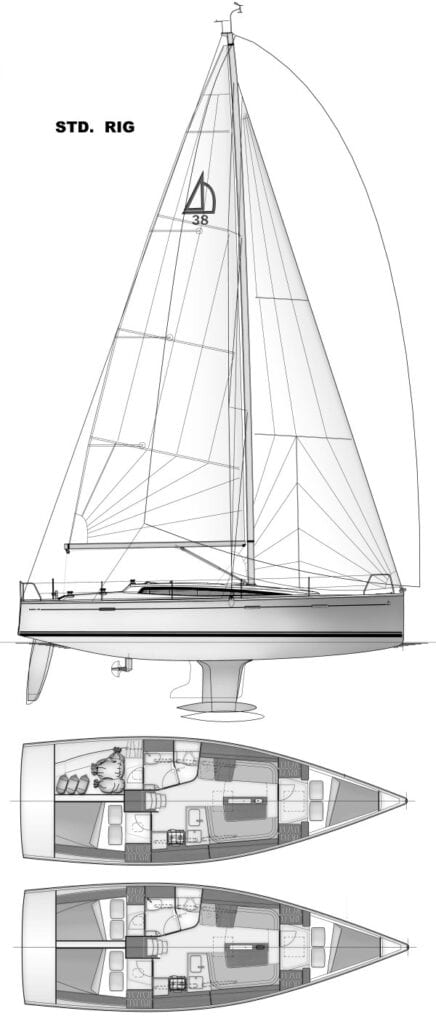

DEHLER 38 (JUDEL/VROLIJK)
The DEHLER 38 (JUDEL/VROLIJK) is a fractional sloop with a fin keel with bulb and spade rudder, built by Dehler (GER) to a design by Judel and Vrolijk. First built in 2013, published specifications include length overall of 11.58 m (38.00 ft), beam of 3.75 m (12.30 ft), and hull speed of 7.83 knots.
2013
First Built
11.58 m
LOA
10.40 m
LWL
3.75 m
Beam
Buy DEHLER 38 (JUDEL/VROLIJK) Sails
Mainsails from $1,561.78, custom-made for your boat
DEHLER 38 (JUDEL/VROLIJK) Full Specifications
Dimensions
11.58 m
Length Overall
LWL
10.40 m
Max Draft
2.00 m
Beam
3.75 m
Hull Speed
7.83 kn
Fuel Capacity
159.00 l
Water Capacity
299.00 l
Displacement & Stability
Displacement
7,100.00 kg
Ballast
2,250.00 kg
Pounds Per Inch
680.18 kg
Comfort Ratio
24.43
Capsize Screening
1.97
Engine
Engine Make
Volvo
Engine Model
D1-30
Engine Type
Diesel
Horsepower
28
Sail & Rigging
I
15.10 m
J
4.36 m
P
14.50 m
E
5.20 m
Max Luff
14.54 m
Est. Forestay Length
15.72 m
Buy Sails For DEHLER 38 (JUDEL/VROLIJK)
DEHLER 38 (JUDEL/VROLIJK) Jib
DEHLER 38 (JUDEL/VROLIJK) Genoa
DEHLER 38 (JUDEL/VROLIJK) Foresail
DEHLER 38 (JUDEL/VROLIJK) Mainsail
Mainsail pricing for the DEHLER 38 (JUDEL/VROLIJK) is based on the rig dimensions for this model and your selected build and finish options.
Short Batten Mainsail Dimensions
Sail Area42.22 m²
Sailcloth Weight7.50 oz
Mainsail Area Triangle37.70 m²
Upwind Area 10070.62 m²
Common Questions
After you complete your purchase this is what will happen:
- We prepare your Build Details — the measurements and sail construction — and send them to you to confirm.
- Once confirmed, the information goes to our sail designer, who creates a detailed design plan.
- The design is sent to you for review and approval.
- Once approved, we proceed with making the sail.
Pricing for DEHLER 38 (JUDEL/VROLIJK) sails is calculated from the stored dimensions for this model, the selected sail type, the chosen build, and any relevant optional extras. Final quotations should still be checked against the actual rig, hardware, and fit of the boat before production.
Cross-cut construction is typically the more straightforward cruising option, with strong day-to-day durability and simpler panel layout. Radial-cut construction uses load-aligned paneling where available, which generally improves shape retention and performance.
Yes. Optional extras are tied to the selected sail family and sail type, so only relevant options are shown in the configurator. Hardware, reefs, UV treatments, bags, ropes, and reinforcement packages appear only where they apply.
Published specifications are the starting point, not the final production sign-off. If your spar, furler, hardware, or previous sail measurements differ, use the quotation flow so the specification can be reviewed before an order is confirmed.
